OPERATING LIMITS
Temperature: -30℃～ 200℃
Pressure: ≤4MPa
Speed: ≤13m/s

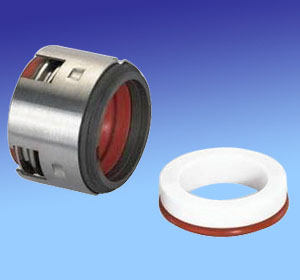

HW502 seal equip with BO seat(DIN24960),
other seats can also be provided, such as BP,BC
● Stationary Ring(Carbon/SiC/TC)
● Rotary Ring(SiC/TC/Carbon)
● Secondary Seal(VITON/PTFE VITON)
● Spring & Other Parts(SUS304/SUS316)
| Seal size d(mm) | d3 | d6 | d7 | L1 | L4 |
| 14 | 24 | 21 | 25 | 35.0 | 12.0 |
| 16 | 26 | 23 | 27 | 35.0 | 12.0 |
| 18 | 32 | 27 | 33 | 37.5 | 13.5 |
| 20 | 34 | 29 | 35 | 37.5 | 13.5 |
| 22 | 36 | 31 | 37 | 37.5 | 13.5 |
| 24 | 38 | 33 | 39 | 40.0 | 13.3 |
| 25 | 39 | 34 | 40 | 40.0 | 13.0 |
| 28 | 42 | 37 | 43 | 42.5 | 12.5 |
| 30 | 44 | 39 | 45 | 42.5 | 12.0 |
| 32 | 46 | 42 | 48 | 42.5 | 12.0 |
| 35 | 49 | 44 | 50 | 42.5 | 12.0 |
| 38 | 54 | 49 | 56 | 45.0 | 13.0 |
| 40 | 55 | 51 | 58 | 45.0 | 13.0 |
| 45 | 61 | 56 | 63 | 45.0 | 13.0 |
| 50 | 66 | 62 | 70 | 47.5 | 13.5 |
| 55 | 71 | 67 | 75 | 47.5 | 13.5 |
| 60 | 80 | 72 | 80 | 52.5 | 13.5 |
| 70 | 89 | 83 | 92 | 60.0 | 14.5 |
| 80 | 104 | 95 | 105 | 60.0 | 15.0 |
