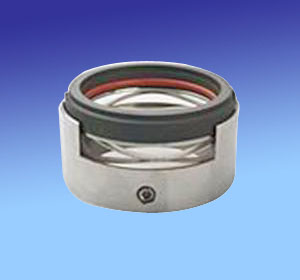

Product Name:Single Unbalanced Wave Spring Seal HW7
Model No:HW7
OR

Description:






    OPERATING LIMITS
    Temperature:   -30℃~ 200℃
    Pressure:         ≤1.6MPa
    Speed:             ≤20m/s



  Stationary Ring(Carbon/SiC/TC)
  Rotary Ring(SiC/TC/Carbon)
  Secondary Seal(VITON/PTFE VITON)
  Spring & Other Parts(SUS304/SUS316)


Seal size  d(mm)d3d6d7L1L3f
1425212535.010.06
1627232735.010.06
1833293337.511.57
2035293537.511.57
2237313737.511.57
2439333940.011.58
2540344040.011.58
2843374342.511.58
3045394542.511.58
3247424842.511.58
3348424842.511.58
3550445042.511.58
3855495645.014.08
4057515845.014.08
4360546145.014.08
4562566345.014.08
4865596645.014.08
5067627047.515.08
5370657347.515.08
5572677547.515.08
5879707852.515.09
6081728052.515.09
6384758352.515.09
6586778552.515.09
6889819052.518.09
7091839260.018.09
7599889760.018.010
801049510560.018.210
8510910011060.018.210
9011410511565.018.210
9511911012065.017.210
10012411512565.017.210
