OPERATING LIMITS
Temperature: -30℃～ 200℃
Pressure: ≤1MPa
Speed: ≤15m/s

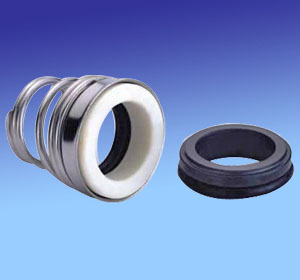

Equivalent to "PAC-SEAL" type17
● Stationary Ring(Carbon/SiC/TC)
● Rotary Ring(SiC/TC/Carbon)
● Secondary Seal(VITON/PTFE VITON)
● Spring & Other Parts(SUS304/SUS316)

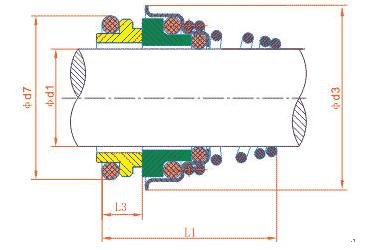

| Size | d1 | d3 | d7 | L1 | L3 |
| 10 | 10 | 20.0 | 18.1 | 20.5 | 5.5 |
| 11 | 11 | 22.0 | 20.6 | 23.5 | 5.5 |
| 12 | 12 | 22.0 | 20.6 | 23.5 | 5.5 |
| 13 | 13 | 25.0 | 23.1 | 28.0 | 6.0 |
| 14 | 14 | 25.0 | 23.1 | 28.0 | 6.0 |
| 15 | 15 | 29.0 | 26.9 | 30.0 | 7.0 |
| 16 | 16 | 29.0 | 26.9 | 30.0 | 7.0 |
| 17 | 17 | 29.0 | 26.9 | 30.0 | 7.0 |
| 18 | 18 | 33.0 | 30.9 | 32.0 | 8.0 |
| 19 | 19 | 33.0 | 30.9 | 33.0 | 8.0 |
| 20 | 20 | 33.0 | 30.9 | 33.0 | 8.0 |
| 21 | 21 | 38.0 | 35.4 | 33.0 | 8.0 |
| 22 | 22 | 38.0 | 35.4 | 33.0 | 8.0 |
| 23 | 23 | 38.0 | 35.4 | 35.0 | 8.0 |
| 24 | 24 | 38.0 | 35.4 | 35.0 | 8.0 |
| 25 | 25 | 40.0 | 38.2 | 35.5 | 8.5 |
| 28 | 28 | 46.0 | 43.3 | 39.0 | 9.0 |
| 29 | 29 | 46.0 | 43.3 | 39.0 | 9.0 |
| 30 | 30 | 46.0 | 43.3 | 39.0 | 9.0 |
| 32 | 32 | 46.0 | 43.3 | 39.0 | 9.0 |
| 33 | 33 | 50.0 | 53.5 | 50.5 | 11.5 |
| 35 | 35 | 50.0 | 53.5 | 50.5 | 11.5 |
| 38 | 38 | 60.5 | 60.5 | 50.5 | 11.5 |
| 40 | 40 | 60.5 | 60.5 | 50.5 | 11.5 |
