OPERATING LIMITS
Temperature: -30℃～ 200℃
Pressure: ≤1MPa
Speed: ≤12m/s

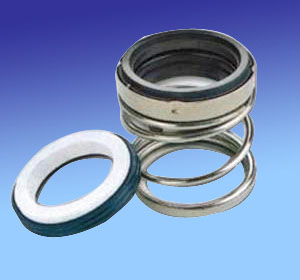

Equivalent to Sealol Type 43CE
● Stationary Ring(Carbon/SiC/TC)
● Rotary Ring(SiC/TC/Carbon)
● Secondary Seal(VITON/PTFE VITON)
● Spring & Other Parts(SUS304/SUS316)

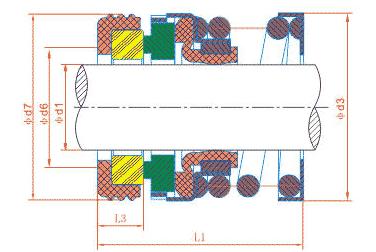

| Size | d1 | d3 | d7 | L1 | L3 |
| 25 | 25 | 39.6 | 40.50 | 35.5. | 10.5 |
| 28 | 28 | 42.5 | 47.65 | 45.0 | 12.0 |
| 30 | 30 | 43.7 | 50.80 | 45.0 | 12.0 |
| 32 | 32 | 45.6 | 50.80 | 45.0 | 12.0 |
| 35 | 35 | 49.0 | 54.00 | 45.0 | 12.0 |
| 38 | 38 | 58.5 | 57.15 | 45.60 | 12.0 |
| 40 | 40 | 55.4 | 60.35 | 45.0 | 12.7 |
| 42 | 42 | 58.5 | 63.50 | 53.0 | 12.7 |
| 48 | 48 | 63.8 | 66.70 | 53.0 | 12.7 |
| 50 | 50 | 66.4 | 69.85 | 54.5 | 13.5 |
| 55 | 55 | 71.6 | 76.20 | 54.5 | 13.5 |
| 57.1 | 57.1 | 78.2 | 76.20 | 54.5 | 13.5 |
| 60 | 60 | 78.2 | 79.40 | 54.5 | 13.5 |
