Micro-beam plasma arc welder with pulse feature can precisely control the heat in the melting pool, especially for bellows, sensor diaphragm, titanium alloy, copper welding; using argon gas and hydrogen protection. Precise welding table uses a modular structure and make all parts connected with each other into an organic whole through the cable connection. Easy to assembly and disassembly and have good mobility suitable power source can be applied to all types of vertical annular welding seam automatically.

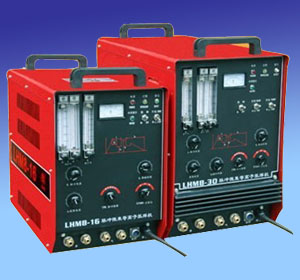

LHM8 series of pulse micro-beam plasma arc welder with pulse feature, it can precisely control the heat in the melting pool; welding ability 0.05 10 board; especially for bellows, sensor diaphragm, titanium alloy, copper welding; using argon gas and hydrogen protection; welding current decay time of 0 ~ 5S adjustable; it can be equipped with automatic special welding machine.
Main Parameters:
| type-16 Plasma Welding Machine | type-30 Plasma Welding Machine | type-50 Plasma Welding Machine | type-160 Plasma Welding Machine | |
| Input power | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
| Rated welding current | 16A | 30A | 50A | 160A |
| Rated input capacity | 1.5KVA | 2.5KVA | 3KVA | 15KVA |
| Rated duty cycle | 60 \% | 60 \% | 60 \% | 60 \% |
| Volume | 520290390 | 600330520 | 60033052 | 800420600 |
| Welder weight | 35Kg | 45Kg | 50Kg | 65Kg |
1.Optional welding: plasma welding (filler wire or non-filler wire), TIG welding (filler wire or non-filler wire), metal arc welding (CO2/MIG/MAG), submerged arc welding, etc.;
2.A suitable fixture for various types of rings, automatic welding of longitudinal joints;
3.PLC programmable controller to control the core control unit, using LCD display, touch screen preset a variety of welding parameters;

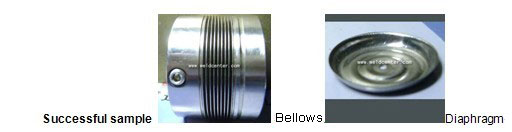

4.Typical welding object: diaphragm, bellows, sensors, automatic welding.

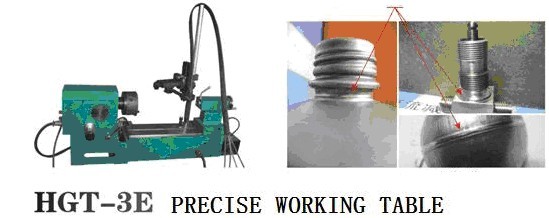

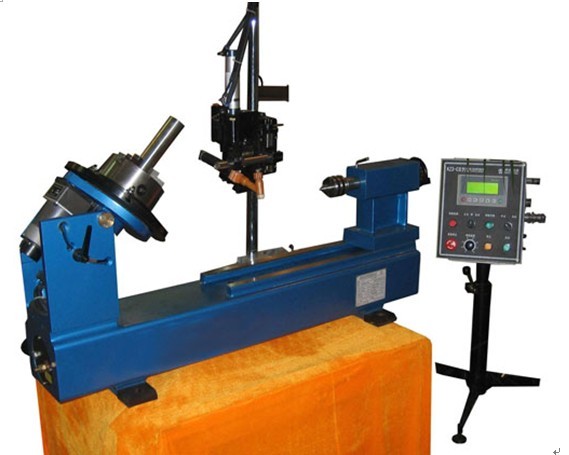

This precise welding table is composing of the rotating head, bed rails, gun moving mechanism, gun lifter, tailstock, gun chuck and manual three-dimensional adjustment mechanism, main controller and optional rotation support and other components. It can be equipped with TIG welding machine (filler wire or non-filler wire), metal arc welding (CO2/MAG/MIG welding), plasma welding and other welding power source to form a girth and longitudinal seam welding system automatically. It uses a modular structure and make all parts connected with each other into an organic whole through the cable connection. Easy to assembly and disassembly and have good mobility. Therefore, a suitable power source can be applied to all types of vertical annular welding seam automatically.
The rotating head, crow fixed and gun moving mechanism are located above the bed, three-dimensional adjustment is mounted above the moving mechanism to facilitate longitudinal seam welding (with corresponding tooling), rotating head can rotate the work piece at different angles in order to make the boat shape welding, tailstock can move on the rail board to achieve welding of different length work-pieces.
