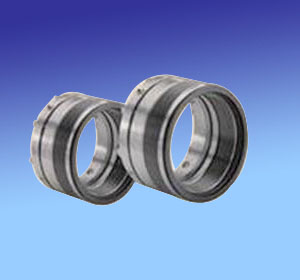

OPERATING LIMITS
Temperature: -20℃～ 400℃
Pressure: ≤2.5MPa
Speed: ≤20m/s
● Rotary Ring: SiC/Carbon/TC
● Stationary Ring: SiC/TC
● Secondary Seal: PTFE Coated VITON/Flexible Graphite
● Metal Bellows: SUS316L/AM350/Inconel718 /Hastelloy-C
● Other Parts: SUS304/SUS316/Hastelloy-C

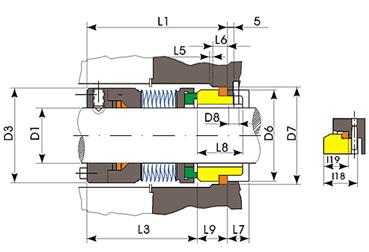

| d1 | d3 | d6 | d7 | d8 | l1 | l3 | l5 | l6 | l7 | l8 | l9 | l18 | l19 | b | s |
| 16 | 38 | 29.0 | 35.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | * | * | 1.6 | 9.0 |
| 18 | 40 | 31.0 | 37.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 10.0 |
| 20 | 42 | 34.0 | 40.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 10.0 |
| 22 | 44 | 37.0 | 43.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 10.0 |
| 24 | 46 | 37.0 | 43.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 8.2 |
| 25 | 47 | 39.0 | 45.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 8.5 |
| 28 | 50 | 42.0 | 48.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 9.0 |
| 30 | 52 | 44.0 | 50.0 | 3 | 58.0 | 46.5 | 2.0 | 5 | 9 | 19.5 | 11.5 | 15.0 | 7.0 | 1.6 | 8.5 |
| 32 | 54 | 49.0 | 56.0 | 4 | 60.5 | 46.5 | 2.0 | 6 | 9 | 22.0 | 14.0 | 15.0 | 7.0 | 1.6 | 9.2 |
| 33 | 55 | 49.0 | 56.0 | 4 | 60.5 | 46.5 | 2.0 | 6 | 9 | 22.0 | 14.0 | 15.0 | 7.0 | 1.6 | 9.2 |
| 35 | 57 | 51.0 | 58.0 | 4 | 60.5 | 46.5 | 2.0 | 6 | 9 | 22.0 | 14.0 | 15.0 | 7.0 | 1.6 | 9.5 |
| 38 | 60 | 54.0 | 61.0 | 4 | 60.5 | 46.5 | 2.0 | 6 | 9 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.2 |
| 40 | 66 | 56.0 | 63.0 | 4 | 61.5 | 47.5 | 2.0 | 6 | 9 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.2 |
| 43 | 69 | 59.0 | 66.0 | 4 | 61.5 | 47.5 | 2.0 | 6 | 9 | 22.0 | 14.0 | 16.0 | 8.0 | 1.6 | 9.2 |
| 45 | 71 | 62.0 | 70.0 | 4 | 62.5 | 47.5 | 2.5 | 6 | 9 | 23.0 | 15.0 | 16.0 | 8.0 | 1.6 | 9.5 |
| 48 | 74 | 65.0 | 73.0 | 4 | 62.5 | 47.5 | 2.5 | 6 | 9 | 23.0 | 15.0 | 16.0 | 8.0 | 1.6 | 9.2 |
| 50 | 76 | 67.0 | 75.0 | 4 | 62.5 | 47.5 | 2.5 | 6 | 9 | 23.0 | 15.0 | 17.0 | 9.5 | 1.6 | 10.5 |
| 53 | 79 | 70.0 | 78.0 | 4 | 62.5 | 47.5 | 2.5 | 6 | 9 | 23.0 | 15.0 | 17.0 | 9.5 | 1.6 | 10.5 |
| 55 | 81 | 72.0 | 80.0 | 4 | 62.5 | 47.5 | 2.5 | 6 | 9 | 23.0 | 15.0 | 17.0 | 9.5 | 1.6 | 10.0 |
| 58 | 85 | 75.0 | 83.0 | 4 | 68.0 | 53.0 | 2.5 | 6 | 9 | 23.0 | 15.0 | 18.0 | 10.5 | 3.0 | 14.0 |
| 60 | 87 | 77.0 | 85.0 | 4 | 68.0 | 53.0 | 2.5 | 6 | 9 | 23.0 | 15.0 | 18.0 | 10.5 | 3.0 | 14.0 |
| 63 | 90 | 81.0 | 90.0 | 4 | 71.0 | 53.0 | 2.5 | 7 | 9 | 26.0 | 18.0 | 18.0 | 10.5 | 3.0 | 14.0 |
| 65 | 92 | 83.0 | 92.0 | 4 | 71.0 | 53.0 | 2.5 | 7 | 9 | 26.0 | 18.0 | 18.0 | 10.5 | 3.0 | 14.0 |
| 68 | 95 | 88.0 | 97.0 | 4 | 71.0 | 53.0 | 2.5 | 7 | 9 | 26.0 | 18.0 | 18.5 | 1.01 | 1.6 | 10.0 |
| 70 | 97 | 88.0 | 97.0 | 4 | 71.0 | 53.0 | 2.5 | 7 | 9 | 26.0 | 18.0 | 19.0 | 11.5 | 3.0 | 17.0 |
| 75 | 102 | 95.0 | 105.0 | 4 | 71.0 | 52.8 | 3.0 | 7 | 9 | 26.2 | 18.2 | 19.0 | 11.5 | 3.0 | 16.0 |
| 80 | 107 | 100.0 | 110.0 | 4 | 71.0 | 52.8 | 3.0 | 7 | 9 | 26.2 | 18.2 | 19.0 | 11.5 | 3.0 | 16.0 |
| 85 | 112 | 105.0 | 115.0 | 4 | 71.0 | 52.8 | 3.0 | 7 | 9 | 26.2 | 18.2 | 19.0 | 11.5 | 3.0 | 16.0 |
| 90 | 117 | 110.0 | 120.0 | 4 | 71.0 | 53.8 | 3.0 | 7 | 9 | 25.2 | 17.2 | 20.5 | 13.0 | 3.0 | 21.0 |
| 95 | 122 | 115.0 | 125.0 | 4 | 71.0 | 53.8 | 3.0 | 7 | 9 | 25.2 | 17.2 | 20.5 | 13.0 | 3.0 | 21.0 |
| 100 | 127 | 122.2 | 134.3 | 5 | 74.0 | 54.0 | 3.0 | 9 | 11 | 30.0 | 20.0 | 20.5 | 13.0 | 3.0 | 20.0 |
