OPERATING LIMITS
Temperature: -30℃～ 200℃
Pressure: ≤1MPa
Speed: ≤10m/s

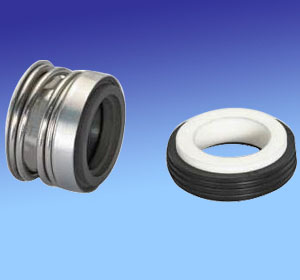

Equivalent to "PAC-SEAL" type 16
● Stationary Ring(Carbon/SiC/TC)
● Rotary Ring(SiC/TC/Carbon)
● Secondary Seal(VITON/PTFE VITON)
● Spring & Other Parts(SUS304/SUS316)

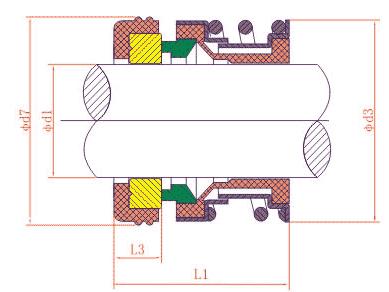

| Size | d1 | d3 | d7 | L1 | L3 |
| 3/8" | 9.525 | 23.290 | 22.225 | 23.80 | 7.14 |
| 1/2" | 12.700 | 23.290 | 25.400 | 23.01 | 6.35 |
| 5/8" | 15.875 | 30.100 | 31.750 | 28.55 | 10.31 |
| 3/4" | 19.050 | 33.070 | 34.925 | 28.55 | 10.31 |
| 7/8" | 22.225 | 36.300 | 38.100 | 30.94 | 10.31 |
| 1" | 25.400 | 39.420 | 41.275 | 31.72 | 11.10 |
