OPERATING LIMITS
Temperature: -30℃～ 200℃
Pressure: ≤0.6MPa
Speed: ≤10m/s

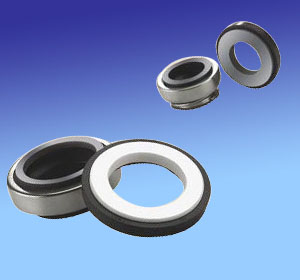

Equivalent to "PAC-SEAL" type17
● Stationary Ring(Ceramic/SiC/TC)
● Rotary Ring(Plastic Carbon/Carbon/SiC/TC)
● Secondary Seal(NBR/EPDM/VITON)
● Spring & Other Parts(SUS304/SUS316)

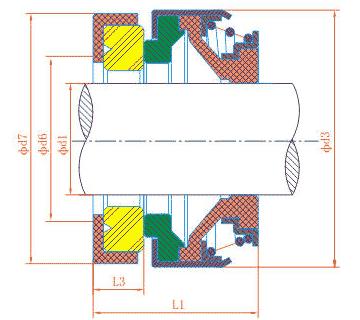

| Size | d1 | d3 | d6 | d7 | L1 | L3 |
| 6 | 6 | 18 | 8 | 18.0 | 14.0 | 4.0 |
| 8S | 8 | 18 | 10 | 22.0 | 15.0 | 4.0 |
| 8M | 8 | 20 | 10 | 22/26 | 15.0 | 4/5.5 |
| 8L | 8 | 24 | 10 | 26.0 | 15.0 | 5.5 |
| 10 | 10 | 24 | 12 | 26.0 | 21.0 | 8.0 |
| 11 | 11 | 24 | 13 | 26.0 | 21.0 | 8.0 |
| 12 | 12 | 24 | 14 | 25/26 | 21.0 | 8.0 |
| 13 | 13 | 24 | 15 | 26.0 | 19.5 | 5.5/8 |
| 13L | 13 | 28 | 16 | 28.0 | 21.0 | 8.0 |
| 13H | 13 | 32 | 16 | 29.5 | 30.5 | 8.0 |
| 14 | 14 | 28 | 16 | 28/28.5 | 21.0 | 8.0 |
| 14L | 14 | 32 | 16 | 29.5 | 21.0 | 8.0 |
| 15S | 15 | 28 | 16 | 28.5/30 | 21.0 | 8.0 |
| 15M | 15 | 32 | 16 | 30/29.5 | 21.0 | 8.0 |
| 15L | 15 | 39 | 18 | 38.0 | 21.0 | 8.0 |
| 16S | 16 | 28 | 16 | 29.5/30 | 21.0 | 8.0 |
| 16M | 16 | 32 | 18 | 29.5 | 21.0 | 8.0 |
| 16L | 16 | 39 | 18 | 38.0 | 21.0 | 8.0 |
| 16H | 16 | 32 | 16 | 30.0 | 31.0 | 10.0 |
| 17 | 17 | 39 | 19 | 42.0 | 21.0 | 8.0 |
| 18 | 18 | 39 | 20 | 42.0 | 21.0 | 8.0 |
| 19 | 19 | 39 | 21 | 42.0 | 21.0 | 8.0 |
| 20 | 20 | 39 | 22 | 42.0 | 21.0 | 8.0 |
| 20L | 20 | 42 | 24 | 45.0 | 23.0 | 10.0 |
| 22S | 22 | 36 | 24 | 45.0 | 26.5 | 10.0 |
| 22L | 22 | 42 | 24 | 45.0 | 23.0 | 10.0 |
| 23 | 23 | 47 | 25 | 50.0 | 23.5 | 10.0 |
| 24 | 24 | 47 | 26 | 50.0 | 23.5 | 10.0 |
| 25 | 25 | 42 | 27 | 50.0 | 23.5 | 10.0 |
| 25L | 25 | 47 | 27 | 50.0 | 23.5 | 10.0 |
| 26 | 26 | 47 | 29 | 50.0 | 23.5 | 10.0 |
| 27 | 27 | 47 | 30 | 50.0 | 23.5 | 10.0 |
| 28 | 28 | 54 | 31 | 57.0 | 25.0 | 10.0 |
| 30 | 30 | 54 | 33 | 57.0 | 25.0 | 10.0 |
| 32 | 32 | 54 | 35 | 57.0 | 25.0 | 10.0 |
| 35 | 35 | 60 | 38 | 63.0 | 26.0 | 10.0 |
| 38 | 38 | 65 | 41 | 68.0 | 30.0 | 12.0 |
| 40 | 40 | 65 | 43 | 68.0 | 30.0 | 12.0 |
| 45 | 45 | 70 | 48 | 73.0 | 32.0 | 12.0 |
| 50 | 50 | 85 | 52 | 88.0 | 38.0 | 15.0 |
| 55 | 55 | 85 | 58 | 88.0 | 38.0 | 15.0 |
| 60 | 60 | 105 | 63 | 110.0 | 45.0 | 15.0 |
